COPPER RANGE FOR SPARK ERODING MACHINES



GET A QUOTE


OUR DAILY SUMMARY ALLOYS QUOTATIONS

ETP ELECTRODES HB<90
ITEM CODE
 SIZES SKETCH PACKING

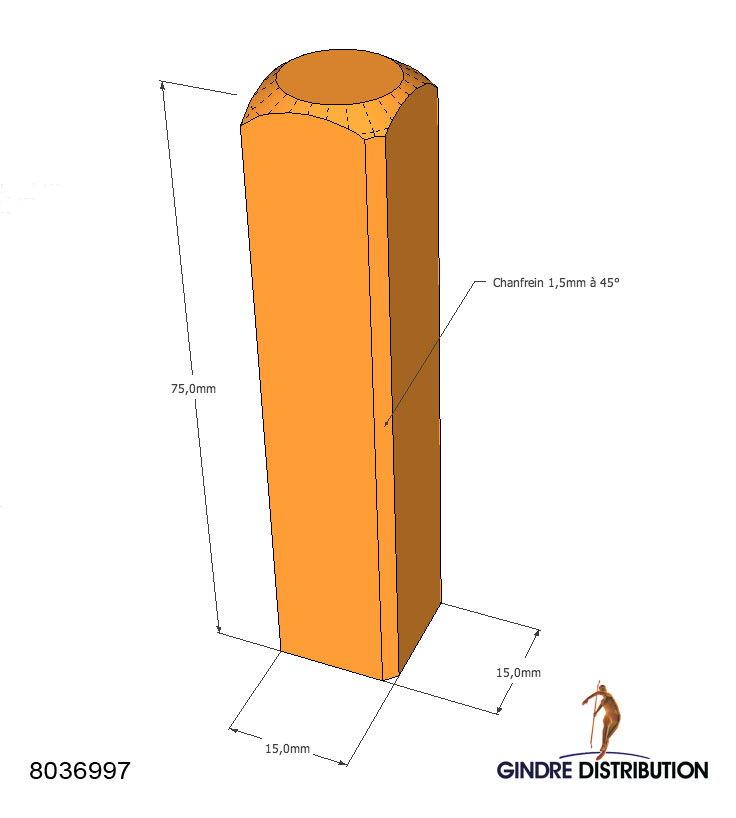

8036997 15 X 15 X 75 mm see sketch 36 pieces box

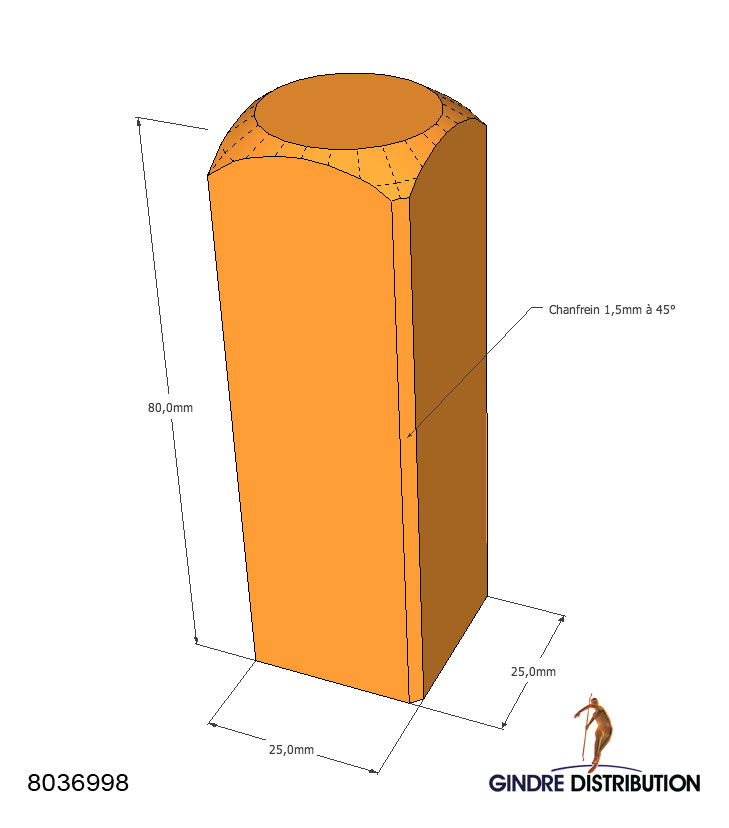

8036998 25 X 25 X 80 mm see sketch 18 pieces box

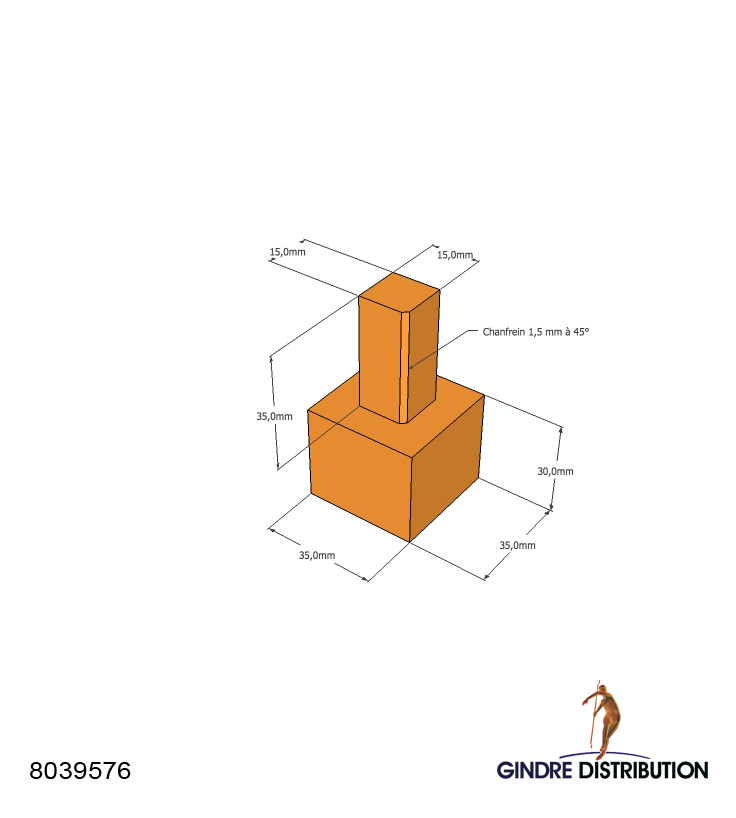

8039576 15 X 15   35 X 35 H=30 mm see sketch 35 pieces box

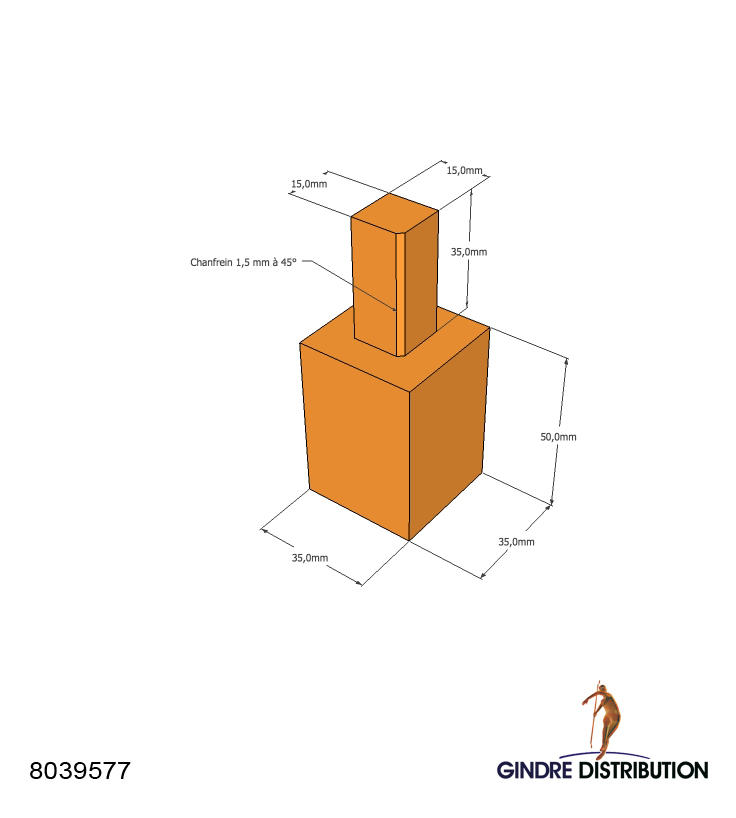

8039577 15 X 15   35 X 35 H=50 mm see sketch 20 pieces box

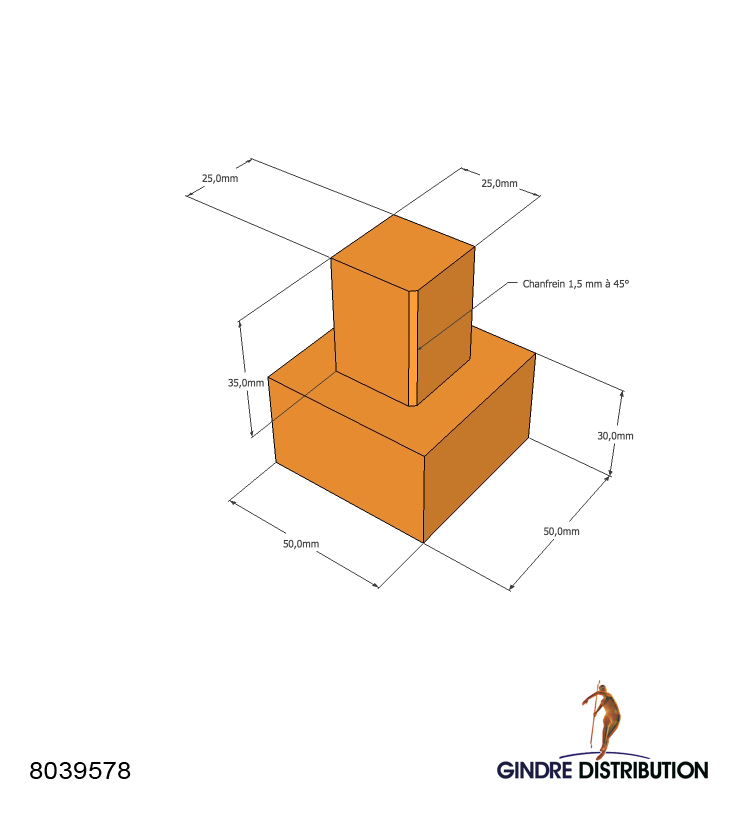

8039578 25 X 25  50 X 50 H=30 mm see sketch 15 pieces box

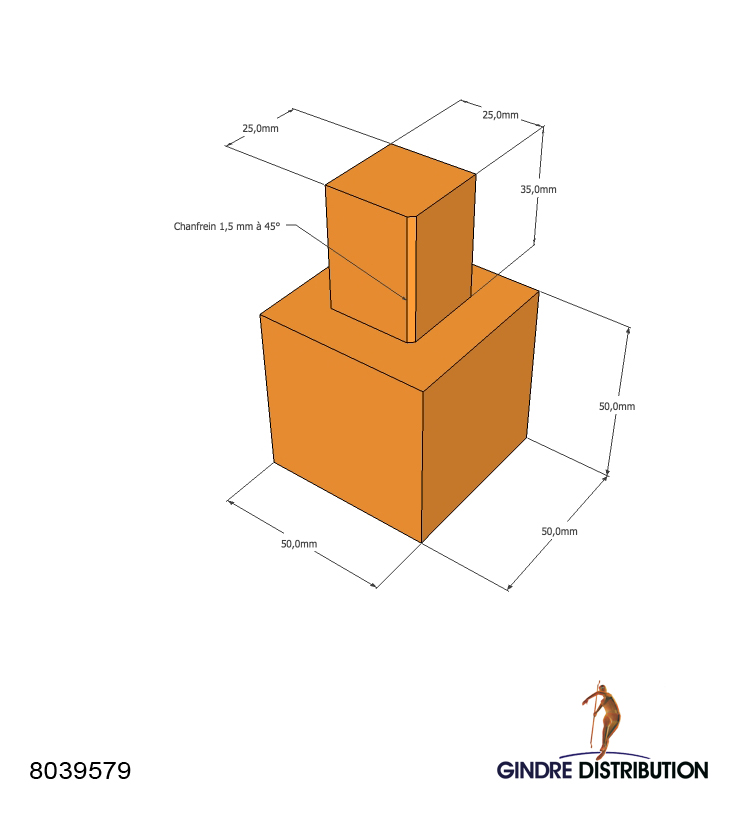

8039579 25 X 25  50 X 50 H=50 mm see sketch 10 pieces box






FLAT, SQUARE, ROD COPPER BARS
CETP HALF HARD 1 m length
SQUARE COPPER BARS
ITEM DESIGNATION ITEM CODE SIZE
Carré de 8 LG 1M 4284427 8 X 8
Carré de 10 LG 1M 4284282 10 X 10
Carré de 12 LG 1M 4284429 12 X 12
Carré de 15 LG 1M 4284283 15 X 15
Carré de 20 LG 1M 4284284 20 X 20
Carré de 25 LG 1M 4284285 25 X 25
Carré de 30 LG 1M 4284286 30 X 30
Carré de 35 LG 1M 4284287 35 X 35
Carré de 40 LG 1M 4284288 40 X 40
Carré de 50 LG 1M 4284289 50 X 50
Carré de 60 LG 1M 4284290 60 X 60
Carré de 70 LG 1M 4284428 70 X 70
Carré de 80 LG 1M 4284291 80 X 80
Carré de 100 LG 1M 4284342 100 X 100

ROD COPPER BARS
ITEM DESIGNATION ITEM CODE DIAMETER
Diam. 3 LG 1M 4284375 3
Diam. 4 LG 1M 4284444 4
Diam. 5 LG 1M 4284445 5
Diam. 6 LG 1M 4284426 6
Diam. 8 LG 1M 4284349 8
Diam. 10 LG 1M 4284359 10
Diam. 12 LG 1M 4284370 12
Diam. 14 LG 1M 42844405 14
Diam. 15 LG 1M 4284306 15
Diam. 16 LG 1M 4284369 16
Diam. 18 LG 1M 4284423 18
Diam. 20 LG 1M 4284305 20
Diam. 20 LG 1M 4284424 20
Diam. 25 LG 1M 4284304 25
Diam. 30 LG 1m 4284303 30
Diam. 35 LG 1m 4284368 35
Diam. 40 LG 1M 4284302 40
Diam. 50 LG 1M 4284391 50
Diam. 60 LG 1M 4284406 60
Diam. 70 LG 1M 4284425 70
Diam. 80 LG 1M 4284436 80
Diam. 100 LG 1M 4284328 100

FLAT COPPER BARS
ITEM DESIGNATION ITEM CODE WIDTH X THICKNESS
30 X 15 LG 1M 4284390 30 X 15
30 X 20 LG 1M 4284329 30 X 20
40 X 15 LG 1M 4284433 40 X 15
40 X 20 LG 1M 4284301 40 X 20
40 X 25 LG 1M 4284300 40 X 25
40 X 30 LG 1M 4284299 40 X 30
50 X 15 LG 1M 4284432 50 X 15
50 X 20 LG 1M 4284330 50 X 20
50 X 25 LG 1M 4284298 50 X 25
50 X 30 LG 1M 4284294 50 X 30
60 X 15 LG 1M 4284431 60 X 15
60 X 20 LG 1M 4284331 60 X 20
60 X 25 LG 1M 4284346 60 X 25
60 X 30 LG 1M 4284297 60 X 30
60 X 40 LG 1M 4284296 60 X 40
80 X 15 LG 1M 4284430 80 X 15
80 X 20 LG 1M 4284295 80 X 20
80 X 25 LG 1M 4284367 80 X 25
80 X 30 LG 1M 4284332 80 X 30
80 X 40 LG 1M 4284293 80 X 40
100 X 15 LG 1M 4284292 100 X 15
100 X 20 LG 1M 4284307 100 X 20
100 X 25 LG 1M 4284308 100 X 25
100 X 30 LG 1M 4284434 100 X 30
100 X 40 LG 1M 4284439 100 X 40
100 X 50 LG 1M 4284309 100 X 50
200 X 10 LG 1M 4284310 200 X 10
